1、額定電壓：300/500V
2、工作溫度：-60～+200℃

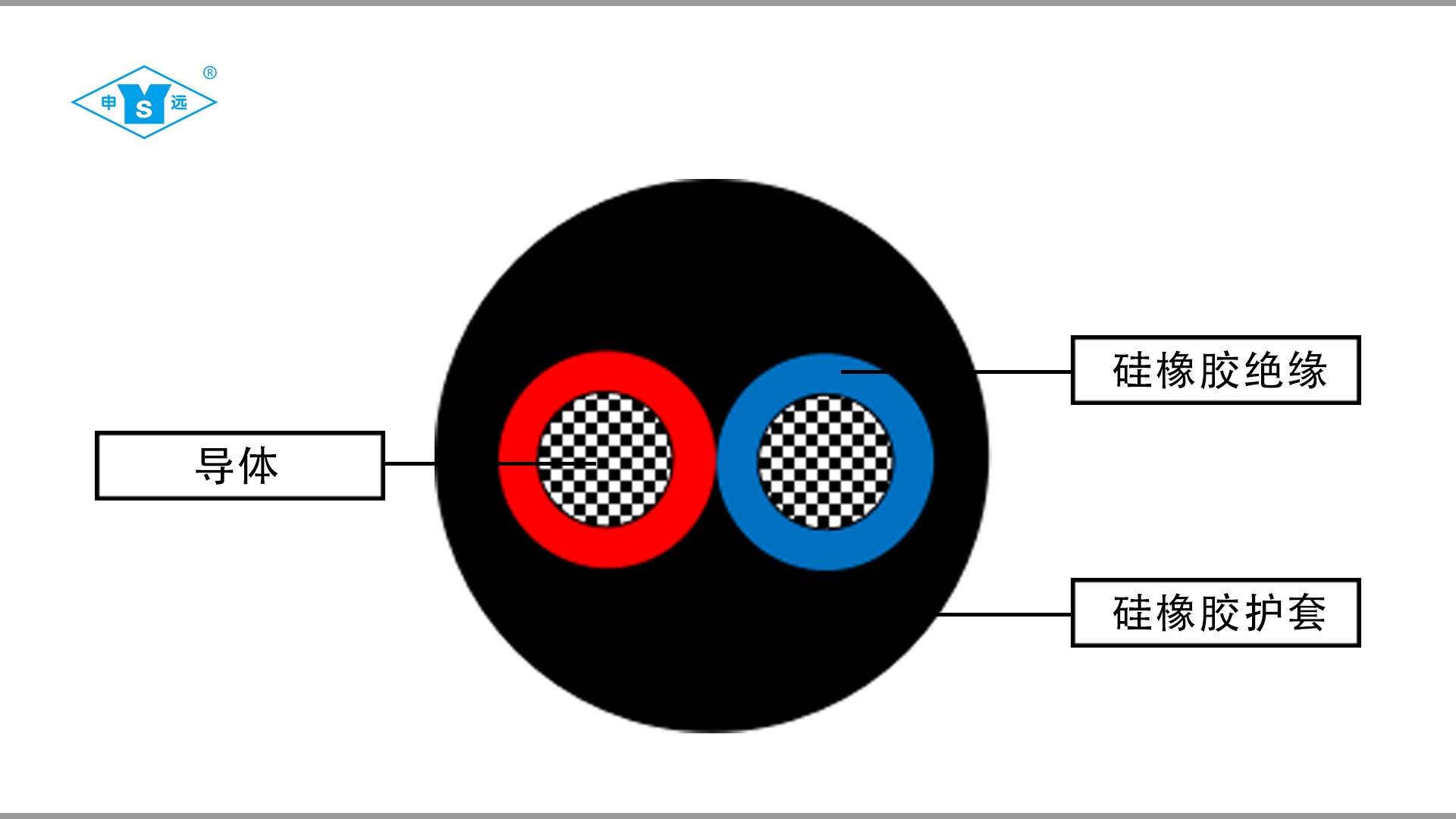

3、導 體：絞合鍍錫銅線
4、絕 緣：硅橡膠
5、護 套：硅橡膠
6、顏 色：紅/黃/蘭/白/黑/黃綠/棕/綠等
|
芯數×截面
（mm2）
|
導體結構
根數/線徑
|
絕緣厚度
（ mm ）
|
絕緣外徑
（ mm ）
|
護套厚度
（ mm ）
|
平均外徑
（ mm ）
|
20 ℃時導體直流電阻
（Ω/km）
|
|
2 × 0.2 |
7/0.20 |
0.40 |
1.40 |
0.90 |
4.60 |
94 |
|
3 × 0.2 |
7/0.20 |
0.40 |
1.40 |
0.90 |
4.80 |
94 |
|
4 × 0.2 |
7/0.20 |
0.40 |
1.40 |
0.90 |
5.20 |
94 |
|
5 × 0.2 |
7/0.20 |
0.40 |
1.40 |
1.0 |
5.80 |
94 |
|
2 × 0.3 |
16/0.15 |
0.40 |
1.50 |
0.90 |
4.80 |
71.2 |
|
3 × 0.3 |
16/0.15 |
0.40 |
1.50 |
0.90 |
5.00 |
71.2 |
|
4 × 0.3 |
16/0.15 |
0.40 |
1.50 |
1.0 |
5.60 |
71.2 |
|
5 × 0.3 |
16/0.15 |
0.40 |
1.50 |
1.2 |
6.40 |
71.2 |
|
2 × 0.5 |
28/0.15 |
0.50 |
2.0 |
1.0 |
6.00 |
40.1 |
|
3 × 0.5 |
28/0.15 |
0.50 |
2.0 |
1.20 |
6.80 |
40.1 |
|
4 × 0.5 |
28/0.15 |
0.50 |
2.0 |
1.20 |
7.20 |
40.1 |
|
5 × 0.5 |
28/0.15 |
0.50 |
2.0 |
1.20 |
7.80 |
40.1 |
|
6 × 0.5 |
28/0.15 |
0.50 |
2.0 |
1.30 |
8.60 |
40.1 |
|
7 × 0.5 |
28/0.15 |
0.50 |
2.0 |
1.30 |
8.60 |
40.1 |
|
2 × 0.75 |
24/0.20 |
0.60 |
2.40 |
1.20 |
7.20 |
26.7 |
|
3 × 0.75 |
24/0.20 |
0.60 |
2.40 |
1.20 |
7.60 |
26.7 |
|
4 × 0.75 |
24/0.20 |
0.60 |
2.40 |
1.30 |
8.50 |
26.7 |
|
5 × 0.75 |
24/0.20 |
0.60 |
2.40 |
1.50 |
9.50 |
26.7 |
|
6 × 0.75 |
24/0.20 |
0.60 |
2.40 |
1.60 |
10.40 |
26.7 |
|
7 × 0.75 |
24/0.20 |
0.60 |
2.40 |
1.60 |
10.40 |
26.7 |
|
10 × 0.75 |
24/0.20 |
0.60 |
2.40 |
1.70 |
12.60 |
26.7 |
|
12 × 0.75 |
24/0.20 |
0.60 |
2.40 |
1.80 |
13.60 |
26.7 |
|
14 × 0.75 |
24/0.20 |
0.60 |
2.40 |
1.80 |
14.20 |
26.7 |
|
19 × 0.75 |
24/0.20 |
0.60 |
2.40 |
1.80 |
15.60 |
26.7 |
|
2 × 1 |
32/0.20 |
0.60 |
2.60 |
1.20 |
7.60 |
20.0 |
|
3 × 1 |
32/0.20 |
0.60 |
2.60 |
1.2 |
7.80 |
20.0 |
|
4 × 1 |
32/0.20 |
0.60 |
2.60 |
1.3 |
8.80 |
20.0 |
|
5 × 1 |
32/0.20 |
0.60 |
2.60 |
1.50 |
10.0 |
20.0 |
|
6 × 1 |
32/0.20 |
0.60 |
2.60 |
1.60 |
11.0 |
20.0 |
|
7 × 1 |
32/0.20 |
0.60 |
2.60 |
1.80 |
11.6 |
20.0 |
|
10 × 1 |
32/0.20 |
0.60 |
2.60 |
1.80 |
13.4 |
20.0 |
|
12 × 1 |
32/0.20 |
0.60 |
2.60 |
1.80 |
14.5 |
20.0 |
|
14 × 1 |
32/0.20 |
0.60 |
2.60 |
1.80 |
15.2 |
20.0 |
|
19 × 1 |
32/0.20 |
0.60 |
2.60 |
1.80 |
16.6 |
20.0 |
|
2 × 1.5 |
48/0.20 |
0.60 |
2.80 |
1.30 |
8.50 |
13.7 |
|
3 × 1.5 |
48/0.20 |
0.60 |
2.80 |
1.30 |
8.50 |
13.7 |
|
4 × 1.5 |
48/0.20 |
0.60 |
2.80 |
1.40 |
9.50 |
13.7 |
|
5 × 1.5 |
48/0.20 |
0.60 |
2.80 |
1.50 |
10.6 |
13.7 |
|
6 × 1.5 |
48/0.20 |
0.60 |
2.80 |
1.8 |
12.0 |
13.7 |
|
7 × 1.5 |
48/0.20 |
0.60 |
2.80 |
1.80 |
12.0 |
13.7 |
|
10 × 1.5 |
48/0.20 |
0.60 |
2.80 |
1.80 |
14.2 |
13.7 |
|
12 × 1.5 |
48/0.20 |
0.60 |
2.80 |
1.80 |
15.2 |
13.7 |
|
14 × 1.5 |
48/0.20 |
0.60 |
2.80 |
1.80 |
16.0 |
13.7 |
|
19 × 1.5 |
48/0.20 |
0.60 |
2.80 |
2.0 |
18.0 |
13.7 |
|
20 × 1.5 |
48/0.20 |
0.60 |
2.80 |
2.0 |
18.5 |
13.7 |
|
24 × 1.5 |
48/0.20 |
0.60 |
2.80 |
2.0 |
21.2 |
13.7 |
|
37 × 1.5 |
48/0.20 |
0.60 |
2.80 |
2.4 |
24.5 |
13.7 |
|
2 × 2.5 |
49/0.25 |
0.70 |
3.50 |
1.5 |
10.0 |
8.21 |
|
3 × 2.5 |
49/0.25 |
0.70 |
3.50 |
1.5 |
10.5 |
8.21 |
|
4 × 2.5 |
49/0.25 |
0.70 |
3.50 |
1.7 |
12.0 |
8.21 |
|
5 × 2.5 |
49/0.25 |
0.70 |
3.50 |
1.8 |
13.2 |
8.21 |
|
6 × 2.5 |
49/0.25 |
0.70 |
3.50 |
1.8 |
14.2 |
8.21 |
|
7 × 2.5 |
49/0.25 |
0.70 |
3.50 |
1.8 |
14.2 |
8.21 |
|
10 × 2.5 |
49/0.25 |
0.70 |
3.50 |
1.8 |
16.8 |
8.21 |
|
12 × 2.5 |
49/0.25 |
0.70 |
3.50 |
1.8 |
18.2 |
8.21 |
|
14 × 2.5 |
49/0.25 |
0.70 |
3.50 |
2.0 |
19.5 |
8.21 |
|
19 × 2.5 |
49/0.25 |
0.70 |
3.50 |
2.2 |
22.0 |
8.21 |
|
24 × 2.5 |
49/0.25 |
0.70 |
3.50 |
2.4 |
26.4 |
8.21 |
|
37 × 2.5 |
49/0.25 |
0.70 |
3.50 |
2.5 |
29.5 |
8.21 |
