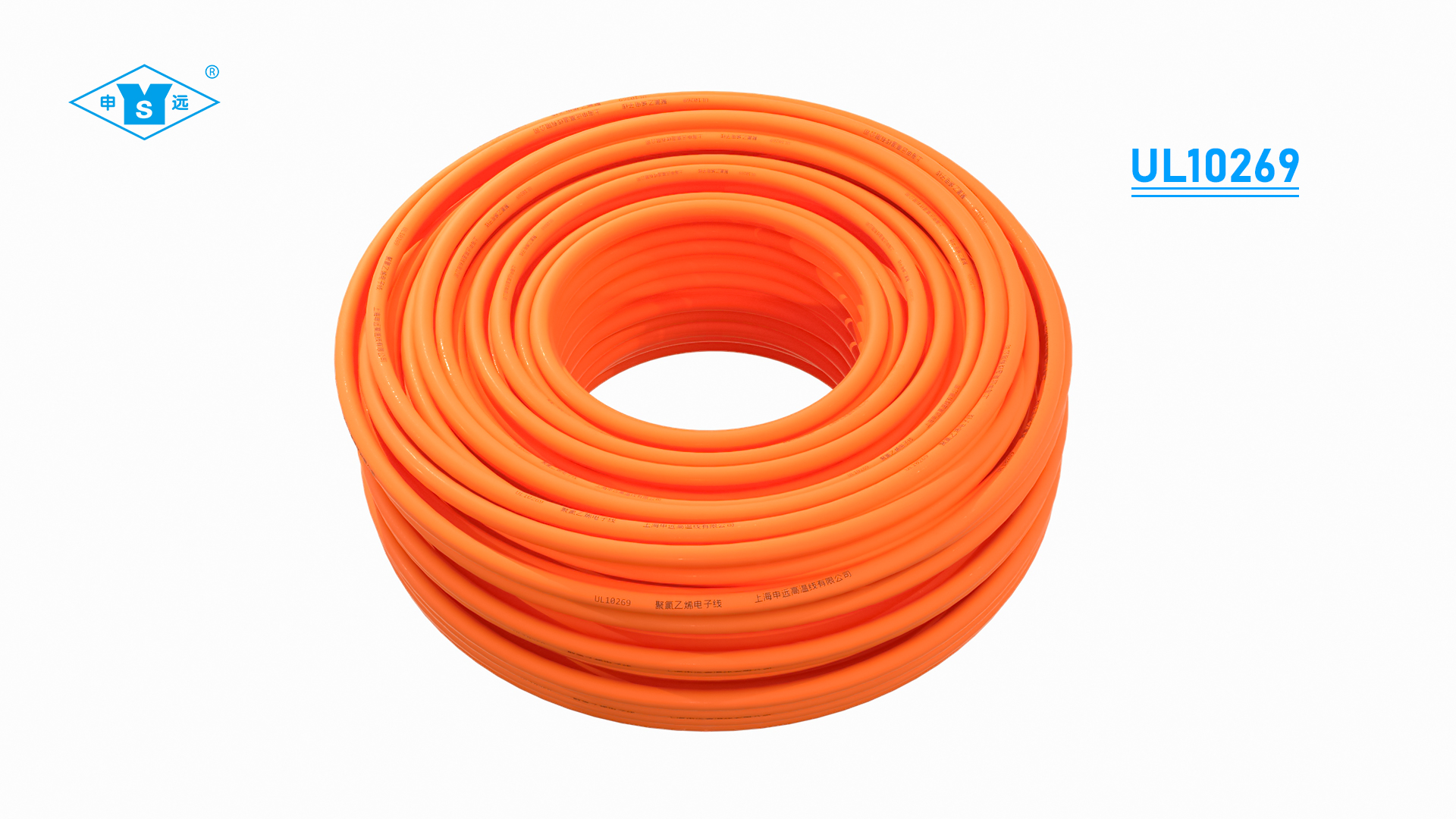

規格 ：26AWG-4/0AWG

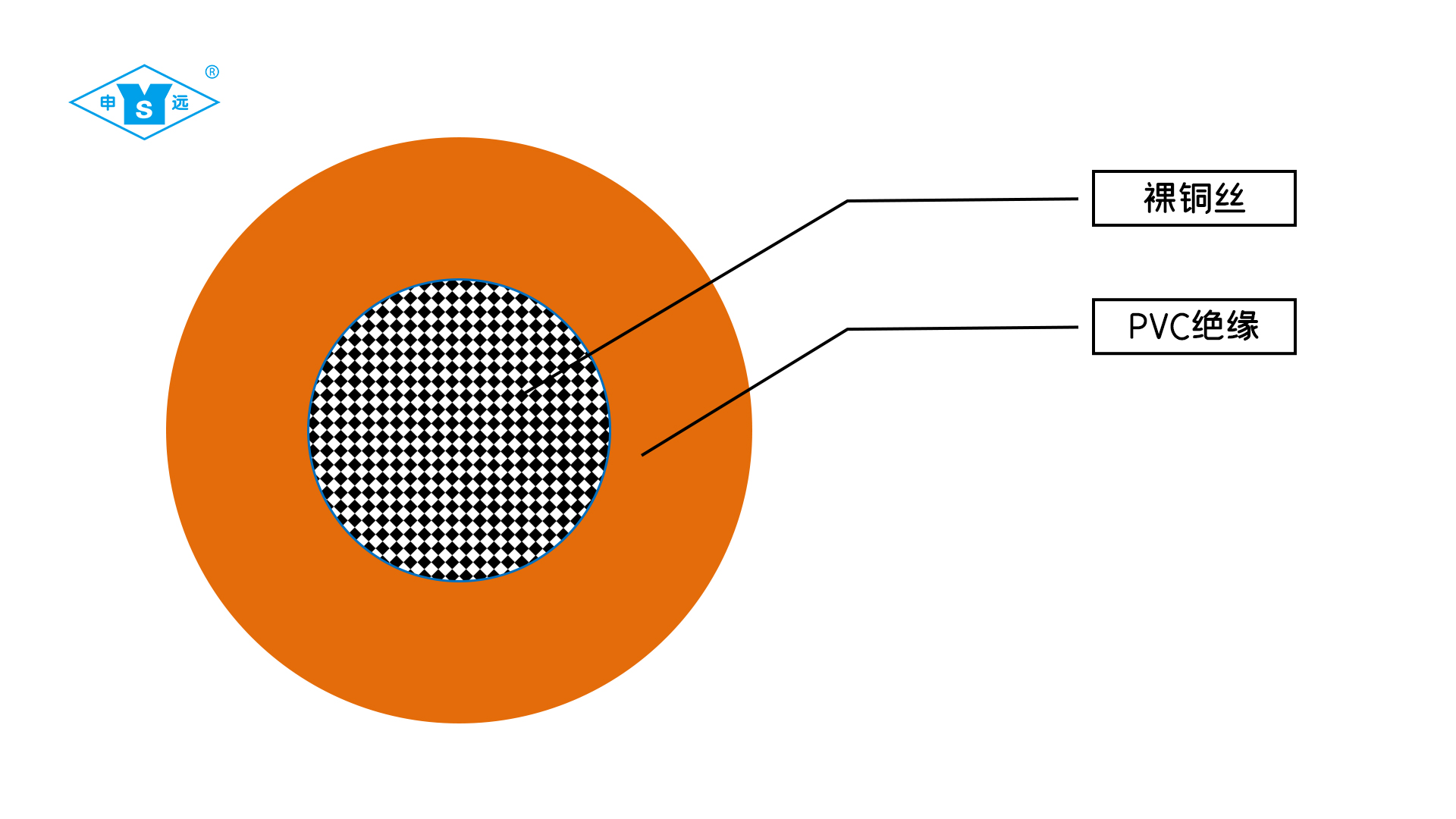

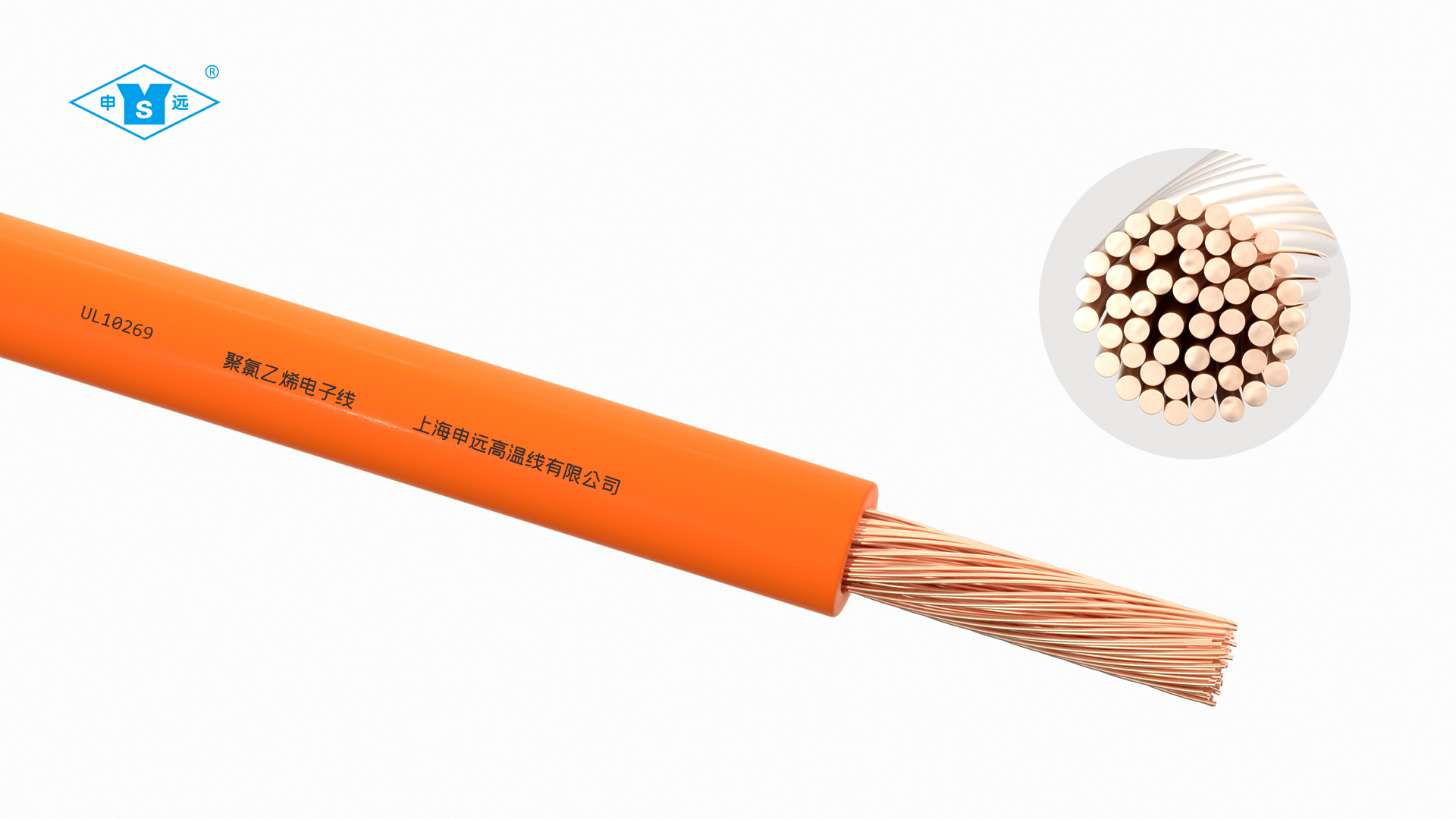

導體：導體使用單根或絞合裸銅絲或鍍錫銅線
絕緣：聚氯乙烯（PVC）材料,符合RoHS環保標準
額定溫度：-25℃~+80℃/90℃/105°C
額定電壓：1000VAC、1500VDC
燃燒測試：通過UL VW-1垂直耐燃測試
環保要求：符合RoHS、Reach環保要求
|
線規 |
導體截面 |
導體結構 |
導體直徑 |
絕緣厚度 |
絕緣厚度 |
絕緣外徑 |
20℃時導體直流電阻 |
|
mm2 |
N/mm |
mm |
mils |
mm |
mm |
Ω/KM |
|
|
26AWG |
0.13 |
7/0.16 |
0.48 |
30 |
0.76 |
2.1 |
150 |
|
24AWG |
0.2 |
11/0.16 |
0.61 |
30 |
0.76 |
2.2 |
94.2 |
|
22AWG |
0.34 |
17/0.16 |
0.76 |
30 |
0.76 |
2.4 |
59.4 |
|
20AWG |
0.52 |
21/0.178 |
0.94 |
30 |
0.76 |
2.6 |
37.4 |
|
18AWG |
0.81 |
63/0.127 |
1.16 |
30 |
0.76 |
2.8 |
23.5 |
|
16AWG |
1.32 |
105/0.127 |
1.5 |
30 |
0.76 |
3.1 |
14.6 |
|
14AWG |
2.08 |
168/0.127 |
1.9 |
30 |
0.76 |
3.5 |
9.15 |
|
12AWG |
3.33 |
259/0.127 |
2.4 |
30 |
0.76 |
4 |
5.75 |
|
10AWG |
5.26 |
413/0.127 |
3 |
30 |
0.76 |
4.7 |
3.55 |
|
8AWG |
8.37 |
658/0.127 |
4 |
45 |
1.14 |
6.5 |
2.23 |
|
7AWG |
10.55 |
833/0.127 |
4.5 |
45 |
1.14 |
7.1 |
1.76 |
|
6AWG |
13.3 |
1029/0.127 |
5 |
60 |
1.52 |
8.4 |
1.41 |
|
5AWG |
16.77 |
1323/0.127 |
5.7 |
60 |
1.52 |
9 |
1.11 |
|
4AWG |
21.15 |
1638/0.127 |
6.3 |
60 |
1.52 |
9.5 |
0.882 |
|
3AWG |
26.67 |
2109/0.127 |
7.3 |
60 |
1.52 |
10.7 |
0.7 |
|
2AWG |
33.62 |
2604/0.127 |
8.1 |
60 |
1.52 |
11.5 |
0.555 |
|
1AWG |
42.41 |
3283/0.127 |
9.1 |
80 |
2.03 |
13.9 |
0.44 |
|
1/0AWG |
53.49 |
4137/0.127 |
10.2 |
80 |
2.03 |
14.8 |
0.349 |
|
2/0AWG |
67.43 |
5225/0.127 |
11.5 |
80 |
2.03 |
16 |
0.276 |
|
3/0AWG |
85.01 |
6574/0.127 |
12.9 |
80 |
2.03 |
17.5 |
0.219 |
|
4/0AWG |
107.22 |
8284/0.127 |
14.4 |
80 |
2.03 |
19.5 |
0.174 |
