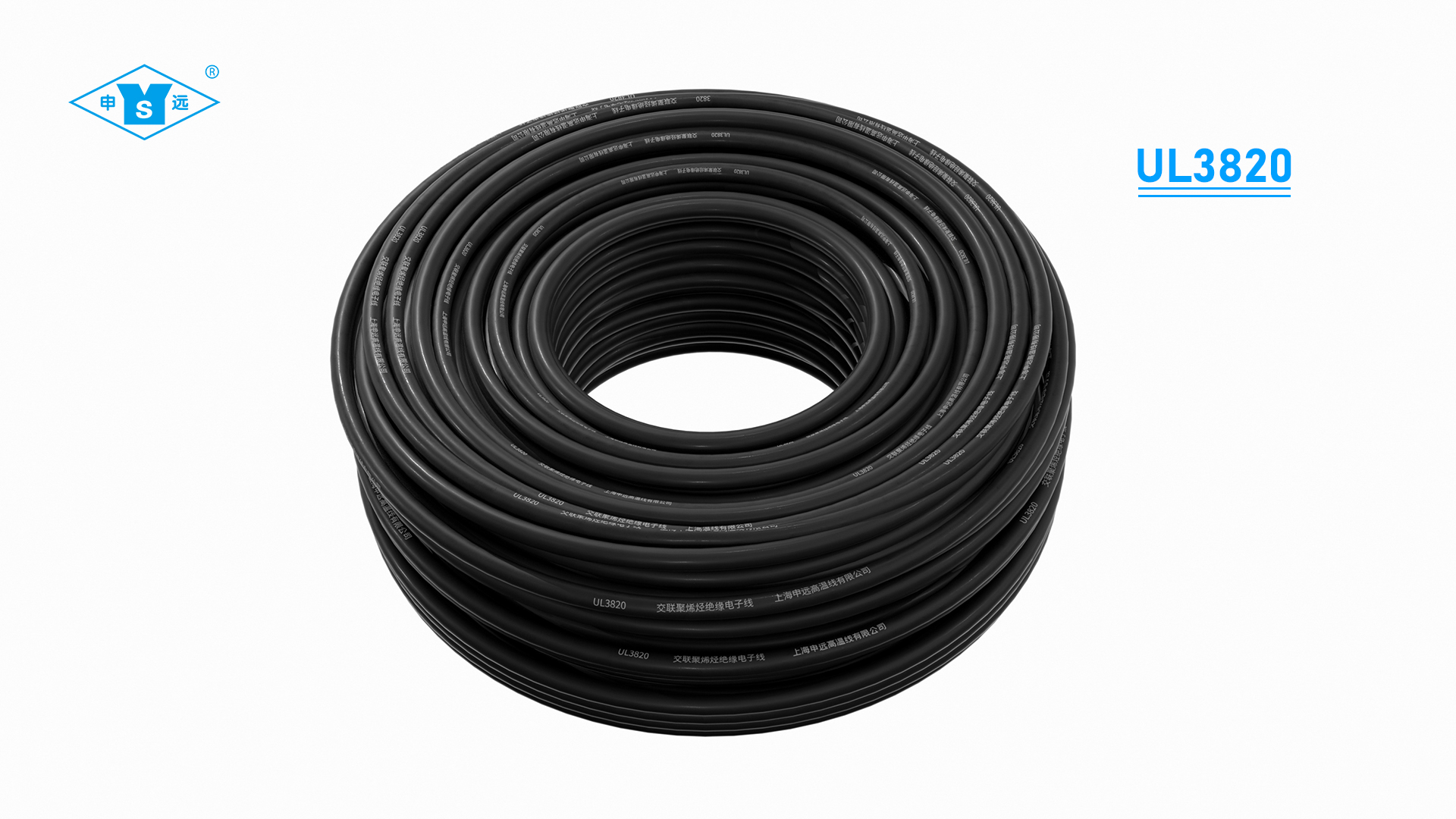

規格 ：26AWG-600kcmil
導體：導體使用單根或絞合裸銅絲或鍍錫銅線
絕緣：交聯聚烯烴材料,符合RoHS環保標準
額定溫度：125°C
額定電壓：1000VAC
燃燒測試：通過UL FT2水平燃燒測試/VW-1垂直耐燃測試
環保要求：符合RoHS、Reach環保要求
|
線規 |
導體結構N/mm |
導體直徑mm |
絕緣厚度mils |
絕緣厚度mm |
絕緣外徑mm |
|
26AWG |
7/0.16 |
0.48 |
30 |
0.76 |
2.1 |
|
24AWG |
12/0.15 |
0.6 |
30 |
0.76 |
2.2 |
|
22AWG |
19/0.15 |
0.75 |
30 |
0.76 |
2.4 |
|
20AWG |
16/0.2 |
0.92 |
30 |
0.76 |
2.5 |
|
18AWG |
26/0.2 |
1.18 |
30 |
0.76 |
2.8 |
|
17AWG |
32/0.2 |
1.31 |
30 |
0.76 |
2.9 |
|
16AWG |
42/0.2 |
1.5 |
30 |
0.76 |
3.1 |
|
14AWG |
66/0.2 |
1.88 |
30 |
0.76 |
3.5 |
|
13AWG |
84/0.2 |
2.12 |
30 |
0.76 |
3.7 |
|
12AWG |
105/0.2 |
2.52 |
30 |
0.76 |
4.1 |
|
11AWG |
133/0.2 |
2.84 |
30 |
0.76 |
4.5 |
|
10AWG |
168/0.2 |
3.19 |
30 |
0.76 |
4.8 |
|
9AWG |
210/0.2 |
3.56 |
30 |
0.76 |
5.2 |
|
8AWG |
266/0.2 |
4.01 |
45 |
1.14 |
6.4 |
|
7AWG |
336/0.2 |
4.51 |
45 |
1.14 |
6.9 |
|
6AWG |
420/0.2 |
5.04 |
45 |
1.14 |
7.4 |
|
5AWG |
532/0.2 |
5.74 |
45 |
1.14 |
8.1 |
|
4AWG |
665/0.2 |
6.42 |
45 |
1.14 |
8.8 |
|
3AWG |
855/0.2 |
7.28 |
45 |
1.14 |
9.7 |
|
2AWG |
1121/0.2 |
8.33 |
45 |
1.14 |
10.8 |
|
1AWG |
1349/0.2 |
9.14 |
55 |
1.4 |
12.1 |
|
1/0AWG |
1691/0.2 |
10.23 |
55 |
1.4 |
13.2 |
|
2/0AWG |
2257/0.2 |
11.86 |
55 |
1.4 |
14.9 |
|
3/0AWG |
2701/0.2 |
12.98 |
55 |
1.4 |
16 |
|
4/0AWG |
3404/0.2 |
14.57 |
55 |
1.4 |
17.6 |
