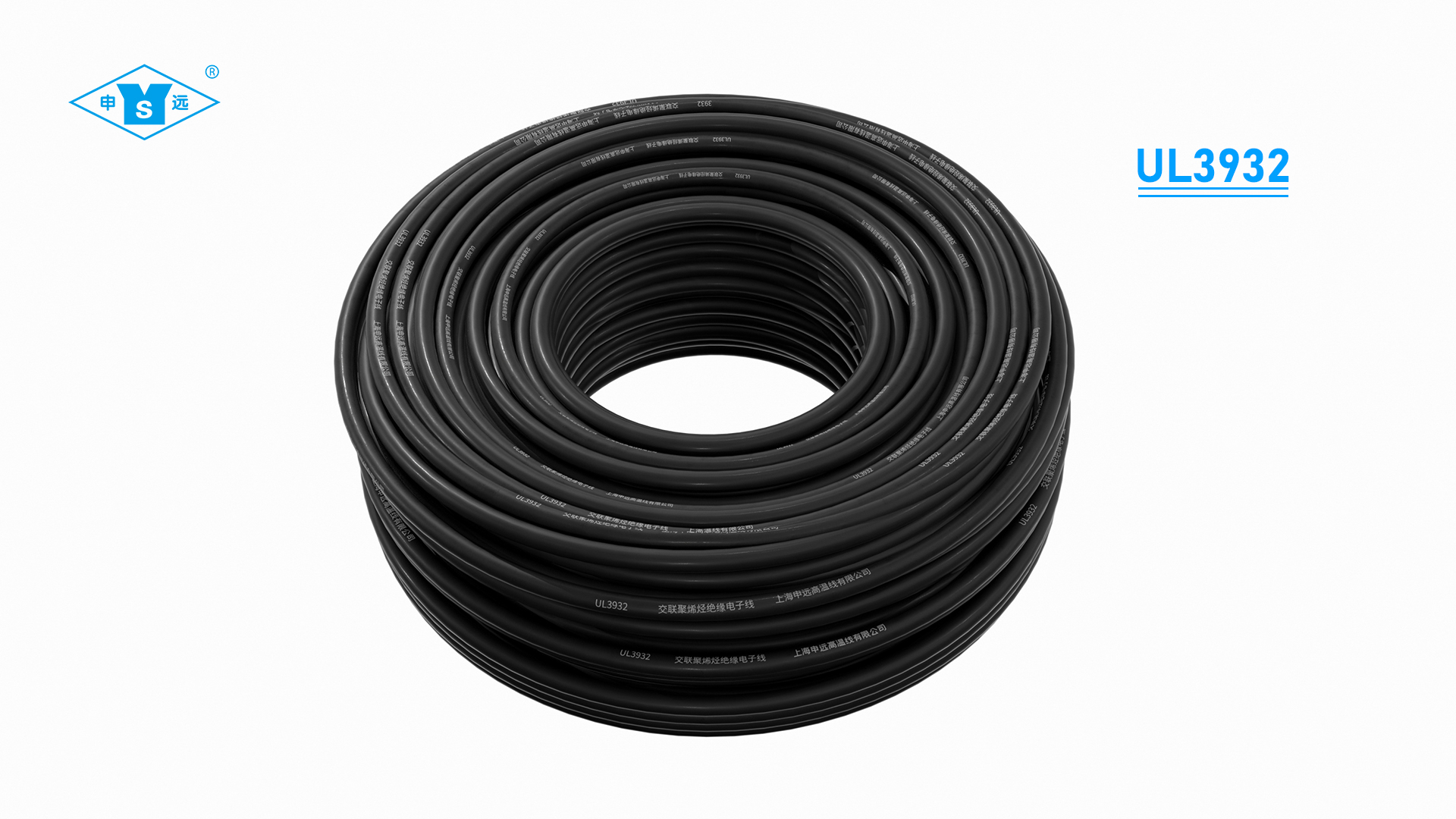

規格 ：26AWG-600kcmil

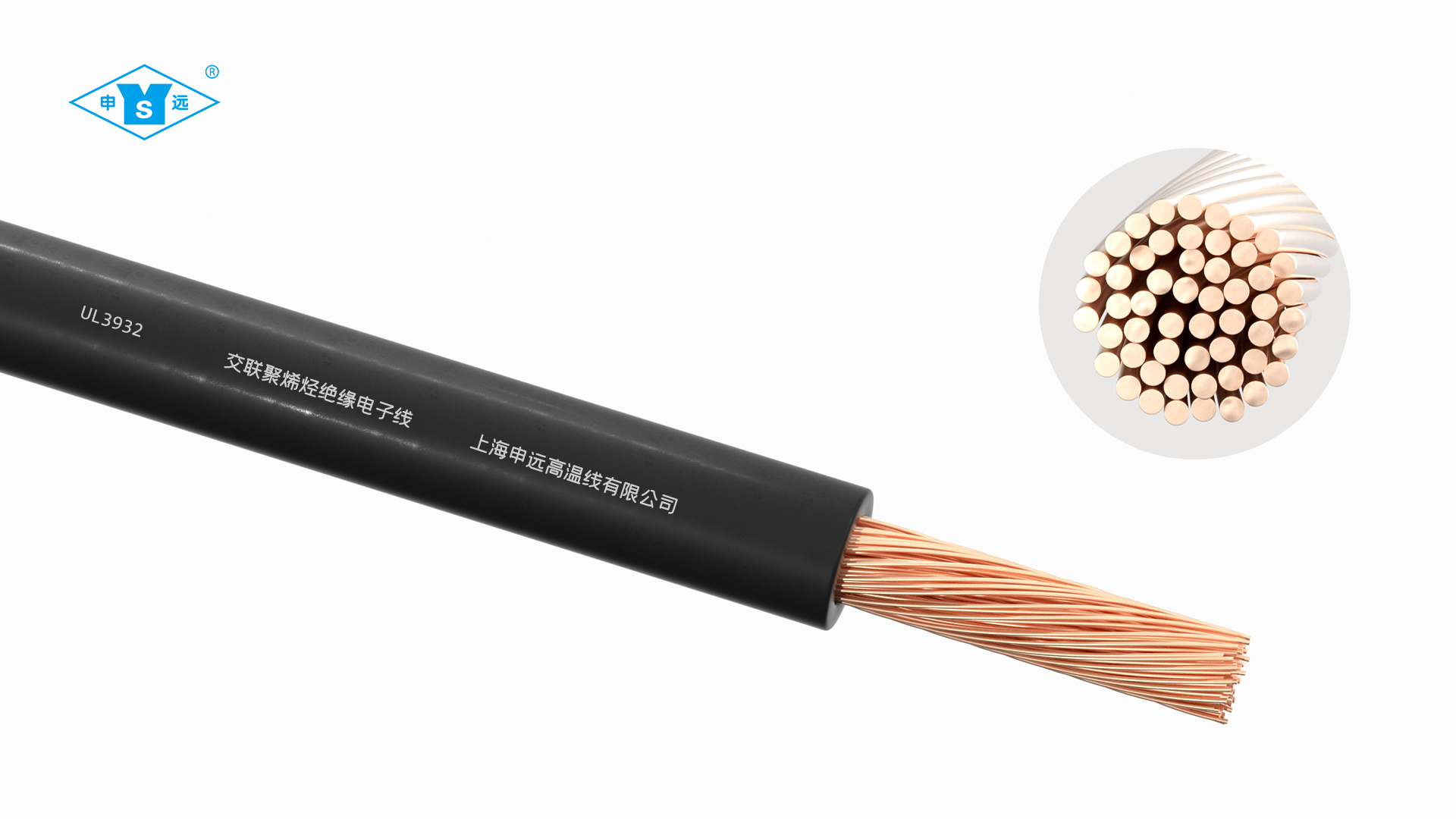

導體：導體使用單根或絞合裸銅絲或鍍錫銅線
絕緣：交聯聚烯烴材料,符合RoHS環保標準
額定溫度：-40～+125°C
額定電壓：2000VAC
燃燒測試：通過UL FT2水平燃燒測試/VW-1垂直耐燃測試
環保要求：符合RoHS、Reach環保要求
|
線規 |
導體結構N/mm |
導體直徑 |
絕緣厚度 |
絕緣外徑 |
20℃時導體直流電阻 |
|
20AWG |
16/0.2 |
0.92 |
1.20 |
3.4 |
37.4 |
|
18AWG |
26/0.2 |
1.18 |
1.20 |
3.7 |
23.5 |
|
17AWG |
32/0.2 |
1.31 |
1.20 |
3.8 |
18.5 |
|
16AWG |
42/0.2 |
1.50 |
1.20 |
4.0 |
14.6 |
|
14AWG |
66/0.2 |
1.88 |
1.20 |
4.4 |
9.15 |
|
13AWG |
84/0.2 |
2.12 |
1.20 |
4.6 |
7.26 |
|
12AWG |
105/0.2 |
2.52 |
1.20 |
5.0 |
5.75 |
|
11AWG |
133/0.2 |
2.84 |
1.20 |
5.4 |
4.48 |
|
10AWG |
168/0.2 |
3.19 |
1.20 |
5.8 |
3.55 |
|
9AWG |
210/0.2 |
3.56 |
1.20 |
6.1 |
2.82 |
|
8AWG |
266/0.2 |
4.01 |
1.20 |
6.5 |
2.23 |
|
7AWG |
336/0.2 |
4.51 |
1.40 |
7.4 |
1.76 |
|
6AWG |
420/0.2 |
5.04 |
1.40 |
7.9 |
1.41 |
|
5AWG |
532/0.2 |
5.74 |
1.40 |
8.6 |
1.11 |
|
4AWG |
665/0.2 |
6.42 |
1.52 |
9.6 |
0.882 |
|
3AWG |
855/0.2 |
7.28 |
1.52 |
10.5 |
0.7 |
|
2AWG |
1121/0.2 |
8.33 |
1.52 |
11.6 |
0.555 |
|
1AWG |
1349/0.2 |
9.14 |
2.03 |
13.4 |
0.44 |
|
1/0AWG |
1691/0.2 |
10.23 |
2.03 |
14.5 |
0.349 |
|
2/0AWG |
2257/0.2 |
11.86 |
2.03 |
16.1 |
0.276 |
|
3/0AWG |
2701/0.2 |
12.98 |
2.03 |
17.2 |
0.219 |
|
4/0AWG |
3404/0.2 |
14.57 |
2.03 |
18.8 |
0.174 |
|
250kcmil |
3996/0.2 |
15.78 |
2.41 |
20.9 |
0.147 |
|
300kcmil |
4810/0.2 |
17.32 |
2.41 |
22.4 |
0.122 |
|
350kcmil |
2516/0.3 |
18.78 |
2.41 |
23.9 |
0.105 |
|
400kcmil |
2849/0.3 |
19.99 |
2.41 |
25.1 |
0.092 |
|
450kcmil |
3219/0.3 |
21.25 |
2.41 |
26.4 |
0.0818 |
|
500kcmil |
3589/0.3 |
22.44 |
2.41 |
27.6 |
0.0736 |
|
550kcmil |
3922/0.3 |
23.45 |
2.79 |
29.3 |
0.0669 |
|
600kcmil |
4292/0.3 |
24.53 |
2.79 |
30.4 |
0.0614 |
